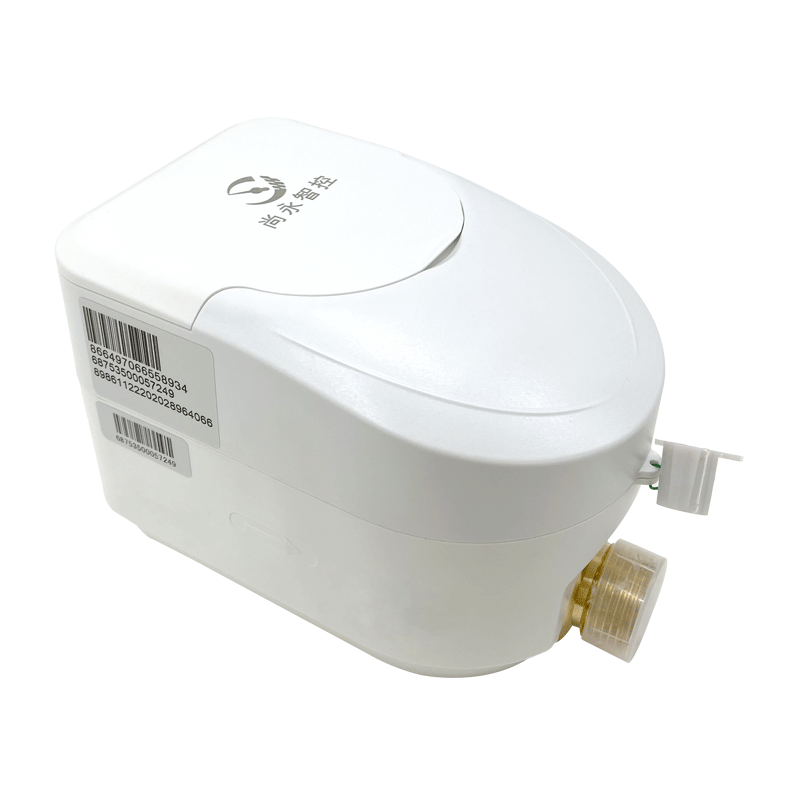

Small diameter ultrasonic water meter

【Applicable Scenarios】
Municipal water supply companies, industrial and commercial users of water metering, secondary water supply network, large user metering, zoning metering, leakage monitoring, such as water monitoring and metering.

Back

PerformanceParametersSizesSelection table

⚫ High range ratio (max. 500:1)

⚫ Self-diagnostic functions: flow sensor failure alarm, temperature sensor failure alarm, measurement over-range alarm, battery undervoltage alarm

⚫ Built-in lithium battery ensures more than 6 years of use

⚫ Optical interface to support handheld infrared meter reading tool on-site reading

⚫ Optional wired communication interface (M-BUS, 485) or wireless communication interface (LoRaWAN)

⚫ Optional built-in NB-loT IoT communication module to form an IoT meter

⚫ Optional power supply:

　　1)Built-in battery power supply (default configuration)

　　2) External power supply (485 configuration, voltage range: DC (7.5 ~ 24) V) (to be specified at the time of order)

⚫ Reverse current can be counted.
